Davit Arm System
from Sky Climber

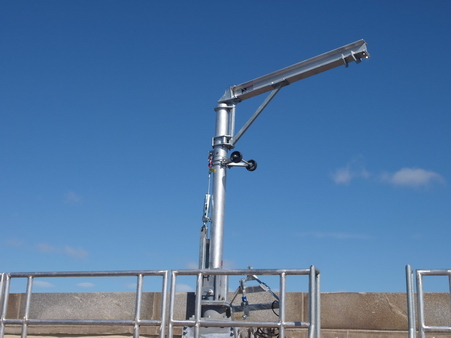

DVT-TR Series Roof Launched Davits:
TPR Roof Davits are Top-Rotating Davits Suitable for Ground or Roof-Launching of a Platform.
|
DVT-TRG-X-XX is a low-profile suspension point for ground-rigged platforms or RDS

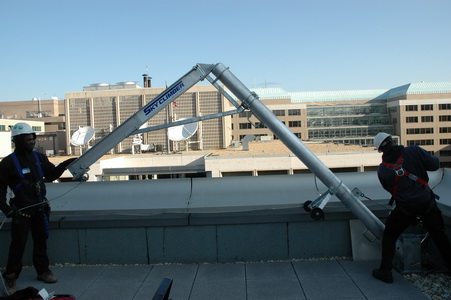

DVT-TRR-X-XX is a high-profile, taller suspension point for roof-launched platforms
|
Top-Rotating Davit Models*:
DVT-TRG-6-SD:
Aluminum Boom/Mast w/Galv. Brace
6’ Boom Reach/5’ Nominal Mast Height
1,000# Capacity @ 4:1 Factor
DVT-TRG-6-HD:
Aluminum Boom/Mast w/Galv. Brace
6’ Boom Reach/5’ Nominal Mast Height
1,250# Capacity @ 4:1 Factor
DVT-TRG-8-SD:
Aluminum Boom/Mast w/Galv. Brace
8’ Boom Reach/5’ Nominal Mast Height
1,000# Capacity @ 4:1 Factor
DVT-TRG-8-HD:
|
Aluminum Boom/Mast w/Galv. Brace
8’ Boom Reach/5’ Nominal Mast Height
1,250# Capacity @ 4:1 Factor
*See Davit Base Guide for Socket Mount-ing Options
|
|
|
|
SKY CLIMBER TIE-OFF ANCHORS ARE MANUFACTURED TO SUPPORT A 1,250# ALLOWABLE LOAD AT A 4:1 FACTOR. THIS EQUALS SUPPORT OF A MINIMUM 5,000# ULTIMATE LOAD WITHOUT FAILURE. THESE ANCHORS SHOULD BE INSTALLED & TESTED UNDER THE DIRECTION OF A LICENSED PROFESSIONAL ENGINEER IN ORDER TO MINIMIZE RISK OF FAILURE DUE TO IMPROPER INSTALLATION, OR INADEQUATE SUBSTRATE SUPPORT. AN IMPROPERLY INSTALLED ANCHOR COULD RESULT IN SERIOUS INJURY OR DEATH TO SUBSEQUENT USERS. ALWAYS FOLLOW MGFR ’ S DIRECTIONS, DRAWINGS, & SPECS.
|
